  • Vision Processor
  • SVM

Surrond View Monitoring

The most compact and lightweight solution for SVM

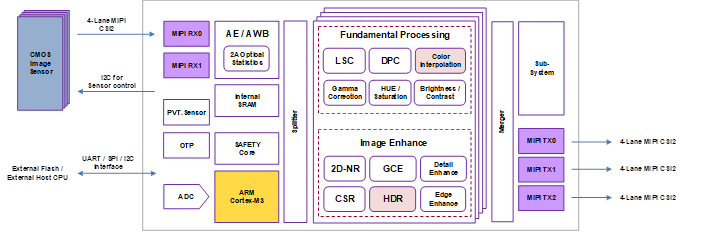

A basic General Purpose ISP

  • CFA

    RGGB, RCCB, RYYCy, RGB-IR

  • Resolution

    2 x 16Mp (5312x2988) @ 45fps
    2 x 8Mp (3840x2160) @ 60fps
    4 x 8Mp (3840x2160) @ 45fps

  • Video In

    2 x 4-lane MIPI CSI-2

  • Video Out

    3 x 4-lane MIPI CSI-2

  • Size

    14mmⅹ14mm

  • Resolution

    1.2M(1296x976)@60fps

  • Optical Format & Pixel

    1/3.7"
    3.0uµm Split-PD

  • CFA

    RGGB

  • Dynamic Range

    HDR only 120dB
    HDR + LFM 120dB

  • Interface

    MIPI-CSI 4lane

  • Embedded

    ISP & AHD™ TX

  • Size

    7.9mm x 7.2mm

  • Resolution

    2M pixel CMOS (1920x1080@60fps)

  • Core

    MCU

  • Video I/O

    • Bayer input 1920x1080@60fps : 4 Lane MIPI-CSI2 Interface

  • Video Out

    • BT.1120
    • MIPI-CSI2
    • AHD™

  • Function

    HDR, LFM, 2DNR, Static PGL

  • Size

    6.5x6.5mm, 0.5p

  • Resolution

    1920x1080@60fps(1ch), 1920x1080@30fps(2ch)

  • Core

    MCU

  • Video In

    Dual ISP 4lane MIPI-CSI2 2ch

  • Video Out

    MIPI-CSI2 4lane x 2 (Support Virtual Channel)

  • Function

    HDR, LFM, 2DNR

  • Size

    9mm x 9mm 0.65p

SCROLL DOWN
The advent of multi-purpose ISP
for SVM solutions that will be your eyes

It provides the most flexible and price-competitive solution through support for a wide range of sensors and Transmitters.

What Nextchip Supports

essentials for RVC
Selectable PGL & LDC flexibility according to your target specification.

Most compact but sticks to the basics
Stand-alone ISP

Focus on image quality rather than additional features and provide the most cost-effective solution.
This is the default ISP among the basics available for various applications.

4ch Seamless Alignment

AE/AWB parameter control the color temperature and brightness of different channels and complete one bird's eye view without any disharmony.

2ch Real-time Processing

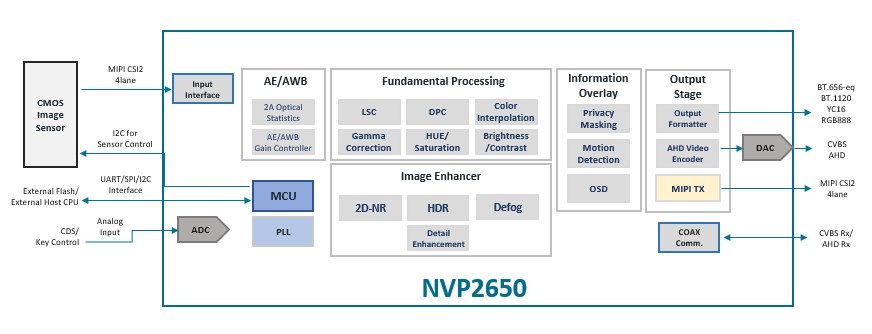

NVP2650D is applied to the ECU end, not the camera end. And 2ch image inputs are processed in real time with each setting values.
It is the only functional safety-compliant solution for existing Standalone ISPs.

Support AHD™ multi-channel input
that maximized cost efficiency

AHD™, the proprietary technology of the Nextchip, is the best solution for SVM, as it embeds TX into an ISP and process four inputs in one RX simultaneously.
AHD™, which is specialized in long-distance transmission, maximizes its benefits when applied to large vehicles such as buses and trucks.
